Understanding the Components of an Electric Water Pump System
An electric water pump system plays a vital role in homes, businesses, and industrial facilities. It ensures a reliable flow of water for daily use, irrigation, and even heating or cooling applications. While many people see a pump as a single unit, the system actually consists of several interconnected components that work together to regulate water flow, control pressure, and protect the pump from damage.

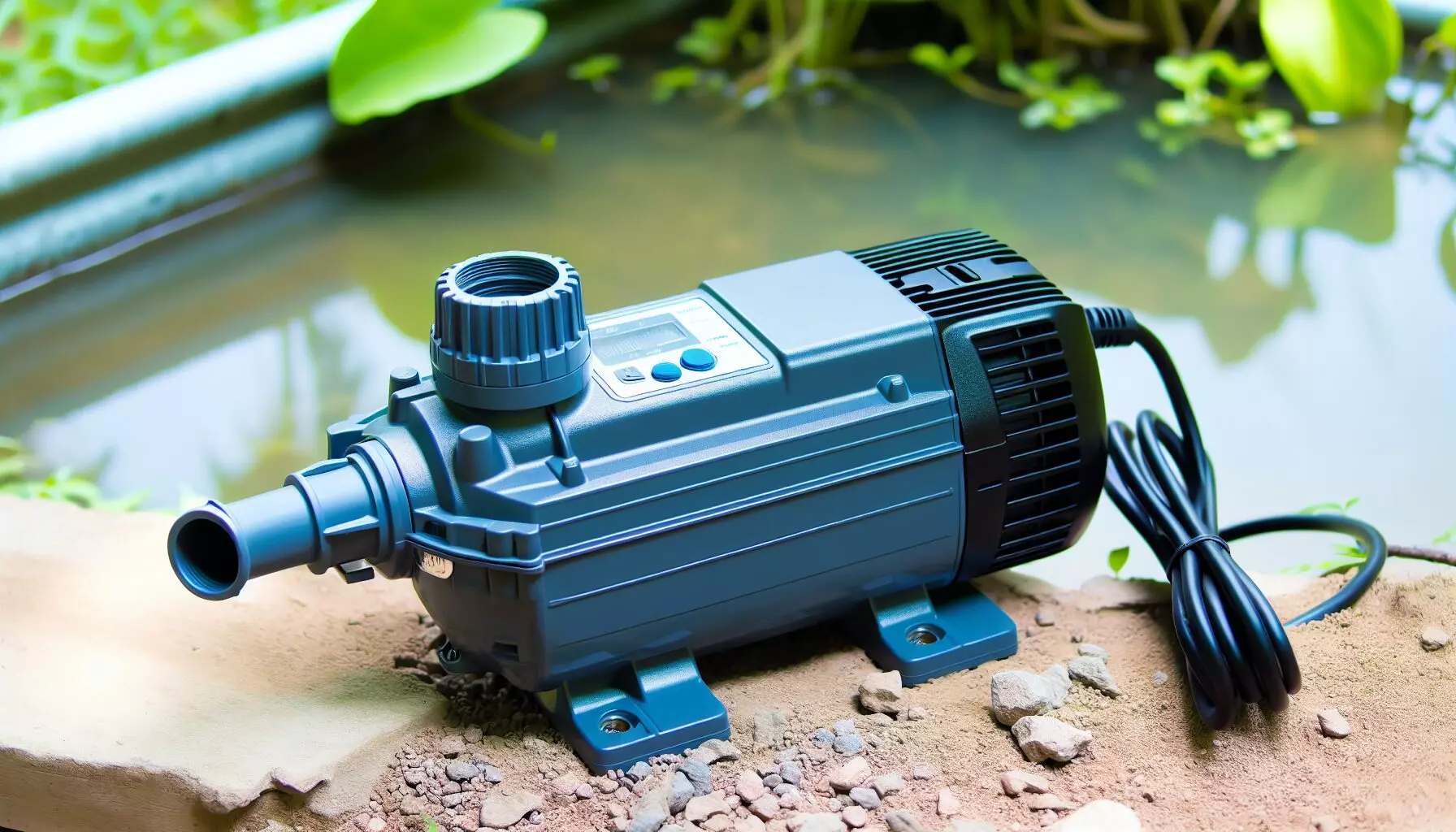

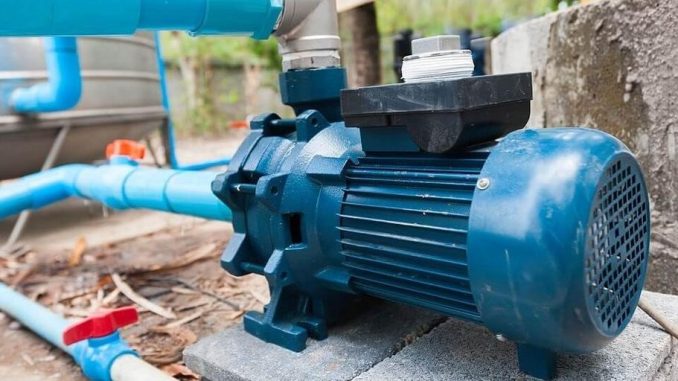

1. Electric Water Pump
At the heart of the system is the electric water pump itself. This motor-driven device converts electrical energy into mechanical energy to move water from one location to another. The pump uses an impeller that spins rapidly to push water through the pipes, creating pressure and ensuring consistent flow.
Electric water pumps are widely used because they are energy-efficient, reliable, and easy to maintain. Depending on the design, they can be used for domestic water supply, garden irrigation, or industrial processes.
2. 90° Elbow
The 90° elbow is a simple but important pipe fitting that allows the water to change direction. Instead of running straight, water can be redirected around corners or obstacles within the plumbing system.
Without elbows, it would be nearly impossible to install a pump in tight spaces or connect it to existing pipelines. High-quality elbows also minimize turbulence inside the pipe, helping to maintain steady pressure and reduce wear on the system.
3. Union
A union is a detachable joint that allows sections of the piping to be easily connected or disconnected. Unlike permanent fittings, a union can be unscrewed without cutting the pipe, making maintenance and repair far easier.
In a pump system, unions are strategically placed around key components like the pump, check valve, or gate valve. This makes it possible to remove and service individual parts without dismantling the entire system.
4. Check Valve
The check valve is one of the most critical safety components in an electric water pump system. It allows water to flow in only one direction, preventing backflow that could damage the pump or contaminate the water source.
When the pump stops running, the check valve automatically closes, ensuring that water does not flow backward. This not only protects the pump from sudden pressure surges but also helps maintain prime inside the system, reducing the risk of dry running.
5. Tee Fitting
The tee fitting is shaped like the letter “T” and is used to split or combine water flow in different directions. In a water pump system, it often connects the main pipeline with auxiliary components such as a pressure gauge or an additional pipe branch.
Tee fittings are versatile and can be used in various layouts, making them essential for distributing water efficiently across multiple outlets.
6. Gate Valve
The gate valve is a manual shut-off valve that controls the flow of water through the system. When the valve handle is turned, a gate-like mechanism raises or lowers to either allow or block water flow completely.
Gate valves are particularly useful when maintenance is required. By closing the valve, a technician can isolate parts of the system without shutting off the entire water supply. Unlike ball valves, gate valves are designed for on/off control rather than precise flow regulation.
7. Water Pressure Gauge
The water pressure gauge measures the pressure within the system and displays it on a dial. Monitoring pressure is essential for ensuring the pump operates within safe limits.
Too much pressure can damage pipes and fittings, while too little pressure may indicate leaks, blockages, or pump issues. A properly functioning pressure gauge helps homeowners and technicians detect problems early and maintain optimal performance.
8. Iron Pipe Plug
The iron pipe plug is a small but necessary component used to close off unused openings in a pipe or fitting. It ensures that no water leaks out of the system and maintains overall pressure integrity.
Pipe plugs are especially handy when the system design includes extra ports for future expansion or testing points. They can easily be removed when additional connections are needed.
How These Components Work Together
Each of the components listed above serves a unique function, but together they create a complete and efficient electric water pump system. Here’s how it works in practice:
-
The electric pump powers water movement.
-
The check valve prevents reverse flow when the pump is off.
-
The elbows, tees, and unions guide water through the pipeline and make the system serviceable.
-
The gate valve allows manual control and isolation of sections.
-
The pressure gauge ensures water pressure stays within safe operating limits.
-
The iron pipe plug seals unused ports to prevent leaks.
This combination of mechanical parts ensures the system operates safely, efficiently, and with minimal downtime.
Maintenance Tips for a Pump System
To maximize the life of an electric water pump system, regular maintenance is important. Here are a few tips:
-
Check pressure readings frequently to spot irregularities early.
-
Inspect the check valve for wear, as backflow prevention is crucial.
-
Lubricate the pump motor as recommended by the manufacturer.
-
Tighten unions and fittings to prevent leaks.
-
Flush the system occasionally to remove sediment or debris.
Proper care not only reduces the risk of breakdowns but also improves energy efficiency and water delivery.
Conclusion
An electric water pump system is much more than just a motor and impeller. From the check valve that prevents backflow to the gate valve that isolates flow, every component plays a critical role in ensuring safety and reliability.
By understanding these parts—electric water pump, 90° elbow, union, check valve, tee, gate valve, pressure gauge, and pipe plug—homeowners and technicians can install, maintain, and troubleshoot their systems with confidence.
Whether for household use, agriculture, or industrial applications, knowing how these components work together will help ensure a steady and reliable water supply for years to come.
